From Evinrude 225hp

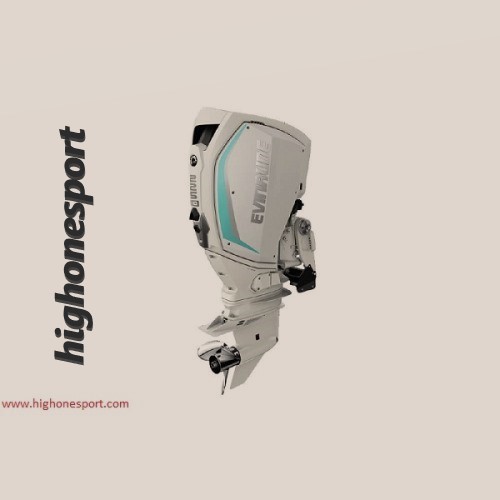

High-Tech Evinrude E-TEC G2 225hp H.O. (High Output) with model number H225HWXF is a 2-stroke direct-injection outboard motor designed for high performance.

Specifications

Model : H225HWXF (2021)

Engine Type : V6 74° E-TEC G2 D.I. (Direct Injection)

Horsepower : 225 HP (H.O. - High Output)

Displacement : 210 cu in (3.4 L)

Bore x Stroke : 3.85 in x 3.00 in (98 mm x 76 mm)

Full Throttle RPM Range : 5400-6000 RPM

Fuel System : E-TEC Direct Injection with stratified low RPM combustion mode

Weight : 569 lbs (258 kg)

Shaft Length : 25 in (635 mm)

Steering : iSteer DPS (Digital Power Steering)

Gear Ratio : 1.85:1

Alternator : 133 Amps Total (50 net dedicated / 14 amps @ idle)

Color : Classic White

Features

E-TEC G2 Technology : Known for high fuel efficiency, with G2 models providing significantly improved fuel economy over G1 models.

Integrated Features : Includes integrated digital steering, power trim and tilt, and advanced engine monitoring.

Lubrication : Oil injected.

Warranty : 5 Years
