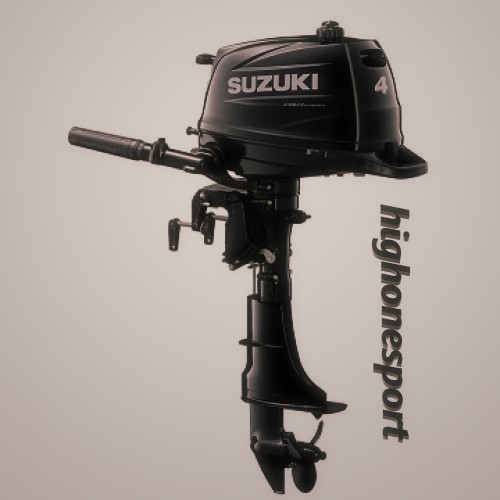

Suzuki 4 HP-DF4 AS5 Outboard Motor

Features

Compact and Lightweight Design

3 Way Storage: Stbd, Port, or Front

Saltwater Rated

Multi-Layer Corrosion Protection

Quiet Below-the-Water Exhaust

Fold-Down Tiller Handle

Rubber Mount Bracket System

Twist-Grip Throttle with Tensioner

Large Carrying Handle

Large Gear Shift Lever

Digital CDI Ignition for Quick Starting

3-Star Ultra-Low Emission Rating

Shallow Water Drive (2 positions)

5 Trim Positions w/Tilt Lock Pin

Over-Rev Limiter Protection

Throttle Tension Control

Steering Friction Tension Control

90° Left / Right Turning for Tight Spots

Emergency Lanyard Stop Switch

In The Box

Built-in .26 Gal. Fuel Tank (40 min. @ WOT)

3-Blade Aluminum Propeller

Suzuki's Newest 5-Year Manufacturer Warranty

Tool kit

Owner's Manual

Oil Not Included

SPECIFICATIONS

Model : DF4AS5

Weight : 52.0 LB

Horsepower : 4HP

Shaft Length : 15 inches (Short)

Steering : Tiller

Starting : Manual

Trim & Tilt : Manual

Fuel Delivery : Carburetor

Fuel Tank : Internal

Cylinder(s) : 1

Displacement : 138 CC (8.4 cubic inches)

Bore and Stroke : 2.38 x 1.89 inches

Full Throttle RPM Range : 4000-5000 RPM

Ignition System : Digital Capacitor Discharge Ignition System

Induction Scavenging : OHV

Valves per Cylinder : 2

Fuel Type : Unleaded Gasoline (87 Octane)

Fuel Tank/Fuel Line : 0.26 US Gallon Integral Fuel Tank

Oil Type : SAE 10W-30 or SAE 10W-40

Oil Capacity : 24 fl oz. (700 mL)

Lubrication : Wet Sump

Alternator : Optional 12V 5A (Installation required)

Cooling System : Water-Cooled

Saltwater Rated : Yes

Gear Ratio : 1.92:1

Gear Shift : Forward-Neutral-Reverse (Starboard side lever)

Propeller : Included - 3-Blade Aluminum, 7.5 Inches Diameter x 6.5 Inches Pitch
