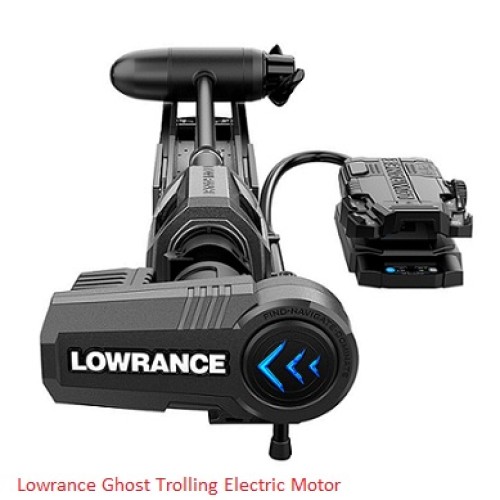

New Lowrance Ghost Trolling Electric Motor

Features

Total Integration with HDS LIVE, HDS Carbon and Elite Ti 2

Dual-action gas spring that makes stowing and deploying the motor easier and quieter

360-Degree breakaway mount is designed to absorb impact, allowing the shaft to deflect away from obstructions and then reposition itself after impact

Designed to work with either 24- or 36-Volt systems, making it compatible with any set-up and easier to implement future upgrades to batteries and chargers

Quiet brushless motors that emits zero electromagnetic interference; ensuring the clearest, interference-free sonar views on your fish finder display

Configure the Ghost pedal to suit your preferences via programmable shortcut buttons

Flip Switch that allows the trolling motor to be driven from either side of the pedal

Instant and smooth fly-by-wire steering control gives Ghost the feel of a traditional cable-steer motor, but without the physical cables that wear out over times

Packaged with an HDI nosecone transducer, giving you the high-level performance of Lowrance CHIRP sonar and DownScan Imaging™ right out of the box

Specifications

Motor

Select shaft length

Usages: Freshwater use only

Mounting location: Bow

Mount style: Scissor style mount

360 Degree breakaway: Yes

Max thrust: 120 lbs @ 36V; 97 lbs @ 24V

Voltage: 24V or 36V

Steering: Fly-by Wire steering

Lift-assist: Dual action gas spring

Compass: External and included

GPS: Internal

Factory warranty: 3 years

Sonar

Included: HDI Sonar nosecone

Frequencies supported: Medium / High CHIRP Sonar, 455/800 kHz

User upgradeable sonar: Active imaging 3-in-1

Depth / temperature: Yes

Number of pins: Mini 9-pin to 9-pin Lowrance adapter included

Autopilot

Custom routes: Yes

Anchor lock: Yes

Heading lock: Yes

Constant on: Yes

Turn patterns: Yes

Foot Pedal

Dimensions: 11-3/4" L, 7-1/4" W, 4-1/2"

Flipswitch: Yes

Programmable shortcut keys: Yes

Waterproof rating: IPX7
