Marine Boat Transmission V-Drive Hurth HBW150V 3306003001

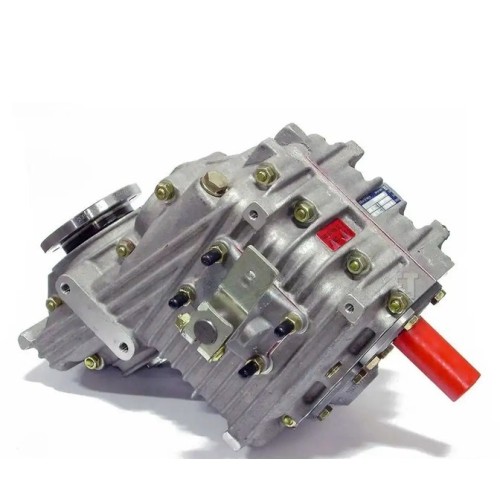

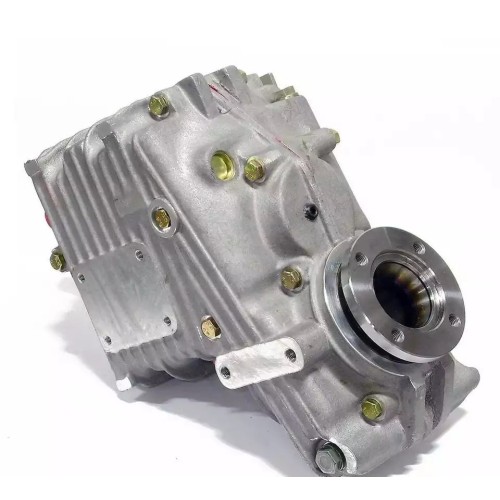

New and unpainted ZF 15MIV marine V-Drive mechanical transmission. Part number 3306003001.
ZF :15MIV
Transmission Specifications :
Gear Ratio: 2.134:1 (A), 2.224:1 (B)
Mechanical Shift
15 Degree Down Angle
For standard-rotation engines only (same as automotive rotation)
“A” shift position is usually ahead forward; “B” shift position is usually reverse
If using “B” for forward, 10-20% reduced power capacity and oil cooler must be used
If using 1, 2, or 3 cylinder engine, reduced power capacity due to shock factor .
Owner’s manual included.
Shipping Weight :52 lbs
Country of Manufacture : Italy
Contact us for more details
Marine Boat Transmission V-Drive Hurth HBW150V 3306003001 (sale)
- Brand: ZF
- Product Code: HBW150V 3306003001
- Availability: In Stock
-
$2,200.00
