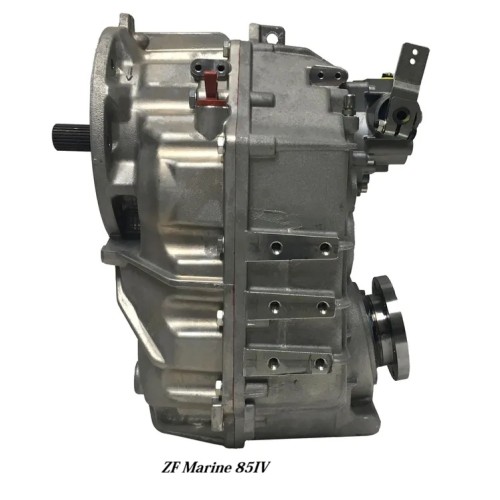

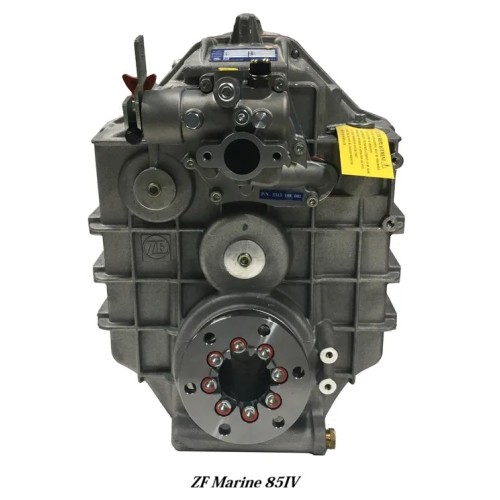

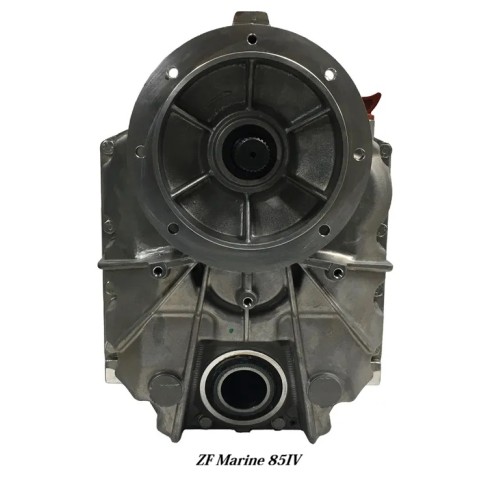

ZF 85IV pass through v-drive transmission with 12 degree down angle
Full reversing design for left hand or right hand propeller shaft rotation in forward
Gear ratio A with lever toward flywheel 1.6:1 - Gear ratio B with lever away from flywheel 1.6:1
6 bolt 5-3/4 inch diameter output flange with 4-3/4 inch center-to-center bolt circle
Standard left hand flywheel input rotation engines only
Mechanical cable shifting - contact us for electric shift
Unpainted aluminum transmission case
Replaceable oil filter element
Weight 190 pounds and ships LTL truck only - Not included in free freight program
Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission
ZF 85IV 1.6:1 Marine Boat Transmission V-Drive 3323003004
- Brand: ZF
- Product Code: ZF 85IV 1.6:1 Marine Boat
- Availability: In Stock
-
$4,900.00
