From Cummins Onan QD 3200
Specifications and technical
Rated Wattage: 3,200 Watts continuous
Voltage: 120V (Single-phase)
Amperage: 26.7 Amps
Frequency: 60 Hz
Regulation: Digital voltage regulation for stable, pure sine wave output
Engine Type: 1-cylinder, 4-cycle, air-cooled diesel engine
Displacement: 347 cc
Engine/Gen Speed: 3100 to 3600 RPM (constant speed)
Starting: 12V remote electric start
Fuel Consumption: ~0.3 gallons per hour (GPH) at half-load | ~0.4 GPH at full load
Dimensions: 30.2" L × 17.3" W × 18.0" H
Weight: 205 lbs (93 kg)
Noise Level: ~68 to 72 dB(A) at 10 feet (half-load)
Vibration: Double-isolation mounting system
Cooling: Special sound-controlling housing encloses the cooling system and muffler
Download pdf
Contact us for more details

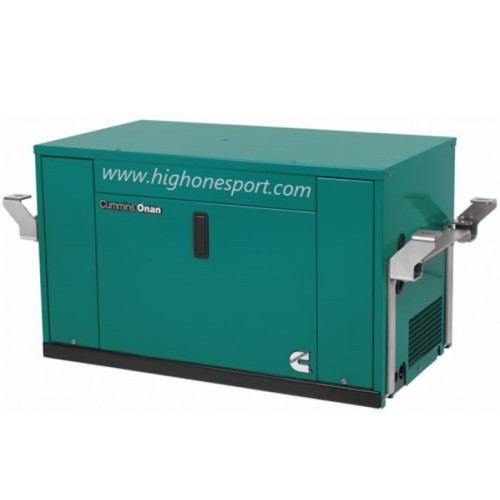

Cummins Onan QD 3200 (3.2HDZAA)
- Product Code: (3.2HDZAA
- Availability: In Stock
-
$10,100.00
